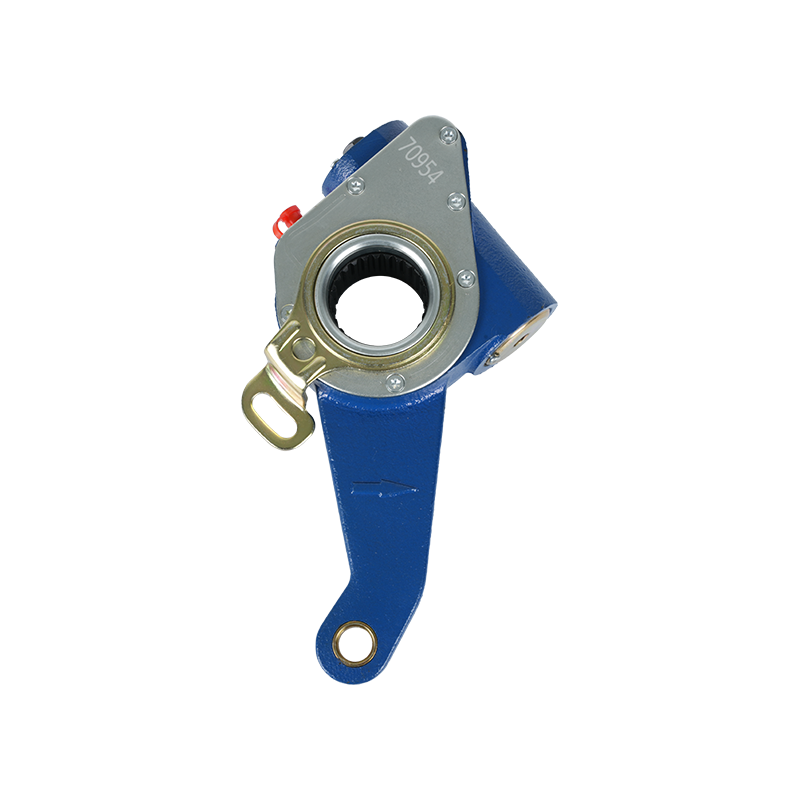

Does the selection of an automatic slack adjuster require consideration of its size?

When choosing an automatic slack adjuster, size is one of the key factors to consider. Its importance is reflected in the following aspects:

1. Installation space restrictions:
The installation position (length, width, height, or aperture) reserved for adjusters in equipment or systems is fixed. An adjuster with external dimensions (including body length, diameter, flange size, installation hole spacing, etc.) that can adapt to the reserved space must be selected.
The size is too large to fit, while the size is too small, which may cause unstable installation or require additional conversion brackets.

2. Matching of itinerary requirements:
The adjuster needs to have sufficient maximum working stroke to meet the requirements for slack compensation in applications. A too small stroke cannot fully compensate for wear, while a too large stroke may exceed the installation space limit or cause mechanism interference before reaching maximum compensation.
It is necessary to consider the minimum installation size (length in fully contracted state) to ensure that the equipment can accommodate this size even during initial installation or with minimal clearance.

3. Interface compatibility:
The connection interface at both ends or one end of the adjuster (such as thread specification, type, flange hole position, spline size, etc.) must be accurately matched with the components that need to be connected (such as brake caliper body, lever, push rod, etc.).
Mismatching interface size or type can result in installation failure or insufficient connection strength.

4. Risk of motion interference:
After installation, the movement track of the adjuster (especially the expansion part) within its working stroke shall not interfere with the adjacent parts, harnesses, pipelines or shells.
It is necessary to consider the dynamic envelope space during the operation of the adjuster, including the maximum extension and contraction states.

5. Convenience of maintenance and disassembly:
Overly compact size design may pose difficulties during later maintenance, inspection, or replacement, making it difficult to operate with tools.
It is necessary to balance compactness and maintenance convenience to ensure sufficient space for operation.

6. Balance between performance and size:
In some cases, larger dimensions may mean greater adjustment force, higher stiffness, or longer service life. It is necessary to select the optimal size specification that can meet performance requirements while satisfying spatial constraints.
