What are common problems with slack adjusters? (Problem summary)

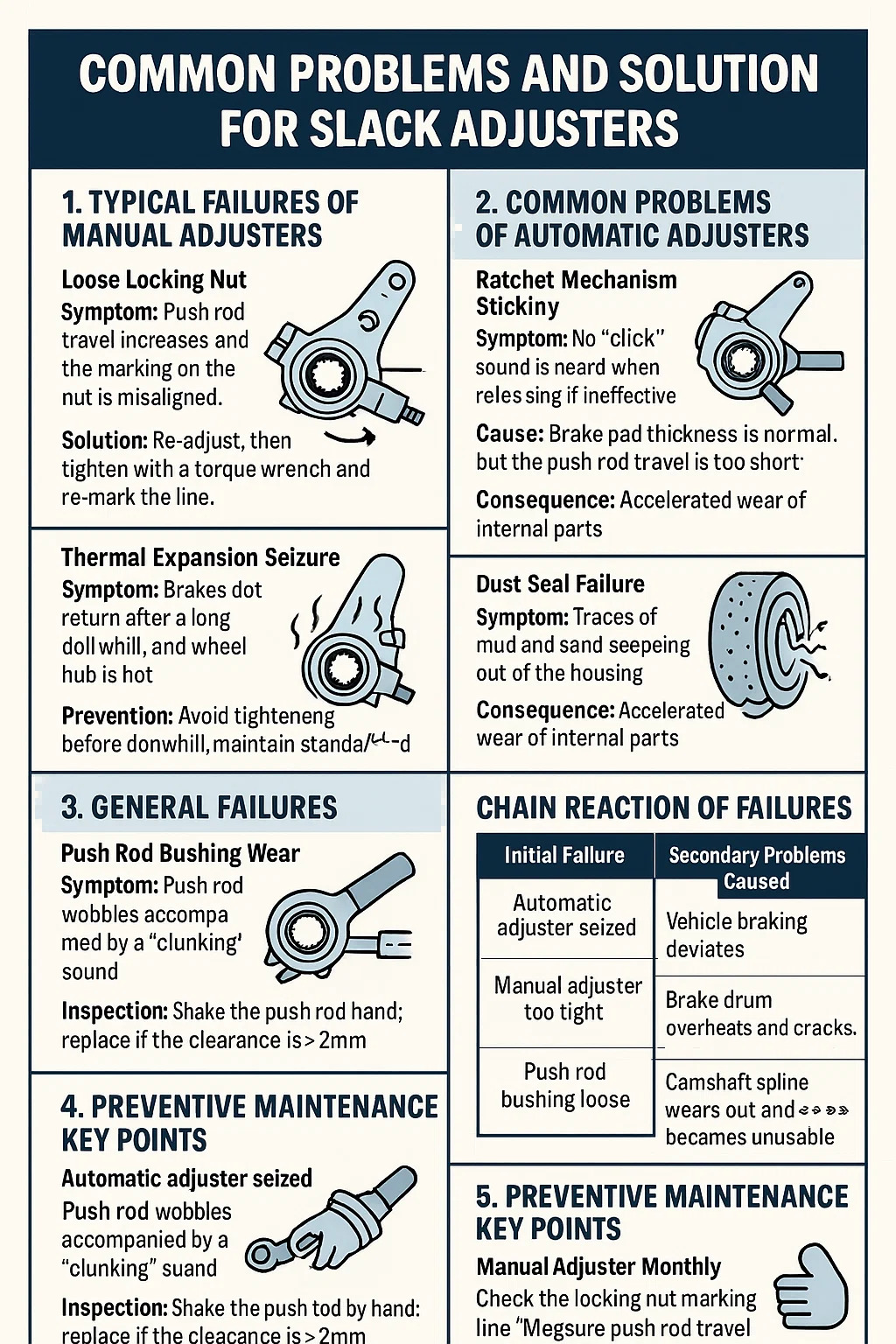

Common Problems and Solutions for Slack Adjusters

1. Typical Failures of Manual Adjusters

• Loose Locking Nut

Symptom: Push rod travel increases, and the marking on the nut is misaligned.
Solution: Re-adjust, then tighten with a torque wrench and re-mark the line.

• Worm Gear Wear

Symptom: Hex wrench slips during adjustment, unable to fix the clearance.
Solution: Replace the entire adjuster (welding repair is prohibited).

• Thermal Expansion Seizure

Symptom: Slacks do not return after a long downhill, and the wheel hub is hot.
Prevention: Avoid tightening before downhill, maintain standard cold clearance.

2. Common Problems of Automatic Adjusters

• Ratchet Mechanism Sticking

Symptom: No "click" sound is heard when releasing the Slack.
Solution: Apply special lubricant to the reset hole; replace if ineffective.

• Over-compensation

Symptom: Slack pad thickness is normal, but the push rod travel is too short (Slack drag).
Cause: Incorrect reset operation or internal spring failure.

• Dust Seal Failure

Symptom: Traces of mud and sand seeping out of the housing.
Consequence: Accelerated wear of internal parts.

3. General Failures

• Push Rod Bushing Wear

Symptom: Push rod wobbles accompanied by a "clunking" sound.
Inspection: Shake the push rod by hand; replace if the clearance is >2mm.

• Mounting Seat Seizure

Symptom: Adjuster cannot be separated from the S-camshaft.
Solution: Heat with a heat gun and apply rust remover.

4. Chain Reaction of Failures

Initial Failure Secondary Problems Caused
Automatic adjuster seized Vehicle braking deviates
Manual adjuster too tight Slack drum overheats and cracks
Push rod bushing loose Camshaft spline wears out and becomes unusable

5. Preventive Maintenance Key Points

• Manual Adjuster Monthly:

Check the locking nut marking line
Measure the push rod travel

• Automatic Adjuster Quarterly:

Listen for the Slack release "click" sound
Observe the housing sealing condition
