Brake Chamber Manufacturers

Exploring the heart of commercial vehicle safety: How does Zhuji Tianbo protect global roads with excellent brake chamber technology?

In the field of commercial vehicles, every brake is related to life and safety. As the core executive component of the pneumatic brake system, how does the brake chamber accurately convert compressed air into mechanical force? In the face of complex working conditions, what key technical parameters does it need to have? Zhuji Tianbo Auto Parts Co., Ltd., which has been deeply involved in the industry for many years, how does it use the ISO/TS16949 quality management system as a cornerstone to export "Made in China" brake chambers to Europe, America, and Southeast Asia, and win international reputation? Let's start with five key issues to uncover the mystery of this "safety guard".

1. Why is the brake chamber the "last line of defense" for commercial vehicle safety?
The brake chamber (also known as the slave pump) drives the diaphragm or piston through air pressure, converts the pressure of compressed air into the mechanical movement of the push rod, and then drives the brake camshaft to rotate, so that the brake shoe fits the brake drum to achieve braking. Its performance directly determines the braking response speed and braking torque stability. For example, in a fully loaded emergency braking scenario, if the air chamber is not sealed enough or the push rod travel is deviated, it may cause braking lag or even failure. Tianbo Company uses high-precision CNC machining and multi-channel sealing detection processes to ensure that the product remains zero leakage at a working pressure of 0.8MPa, eliminating such risks from the source.

2. How do single-chamber and dual-chamber brake chambers adapt to different working conditions? What is unique about Tianbo's solution?

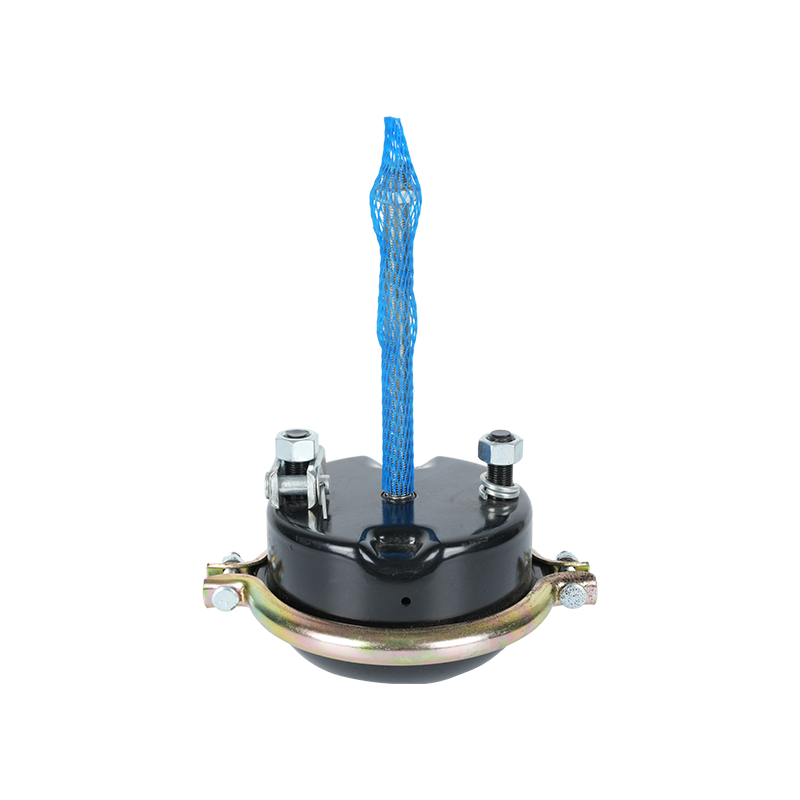

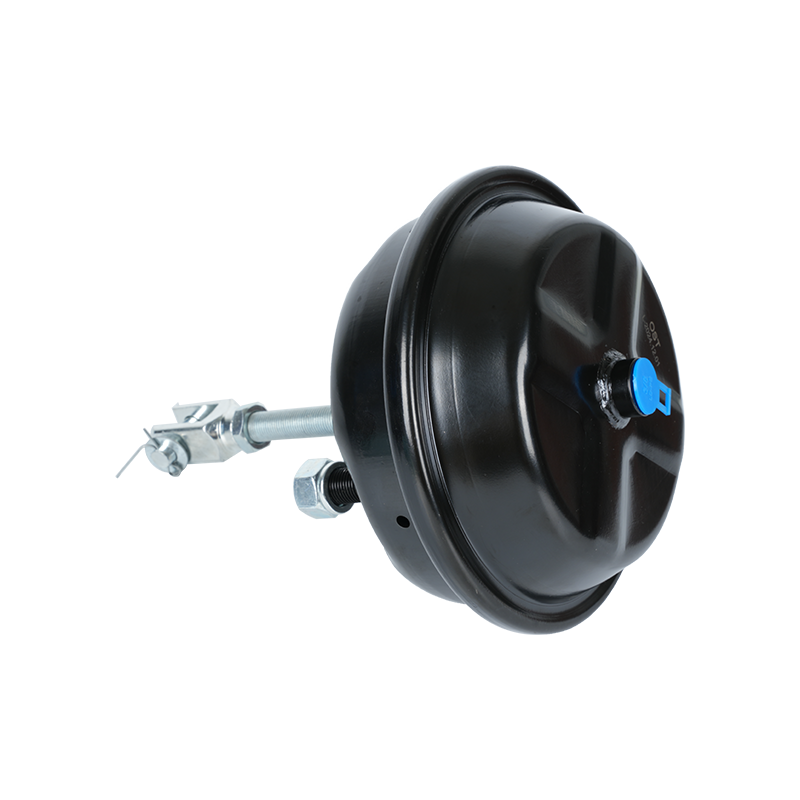

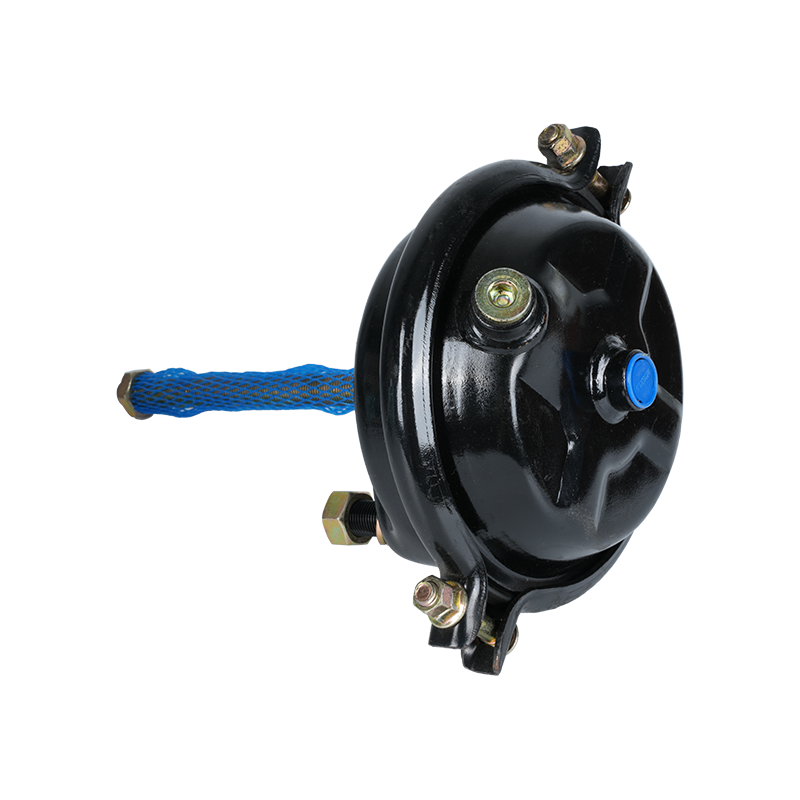

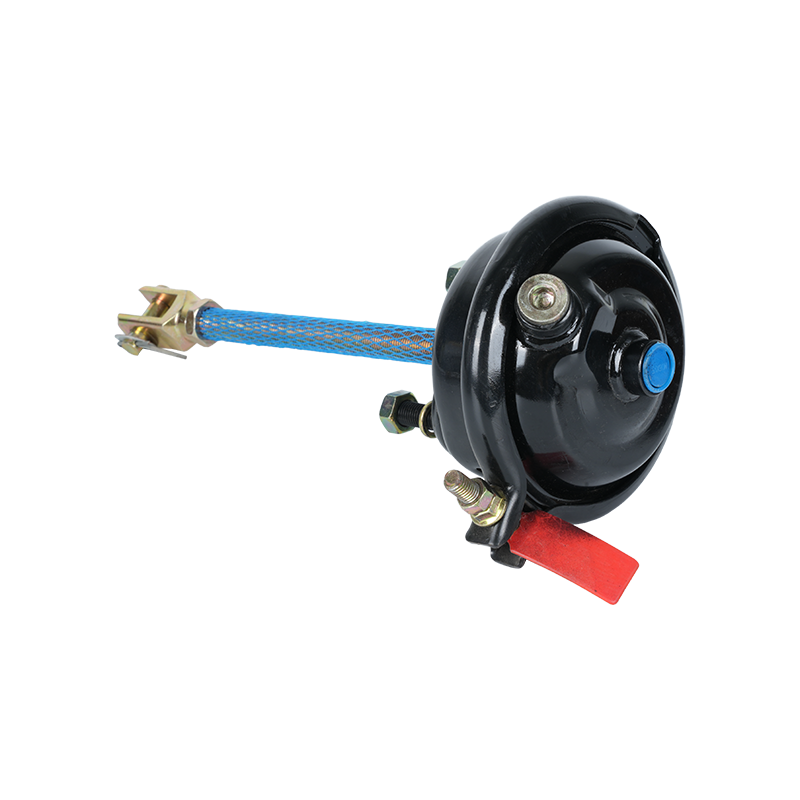

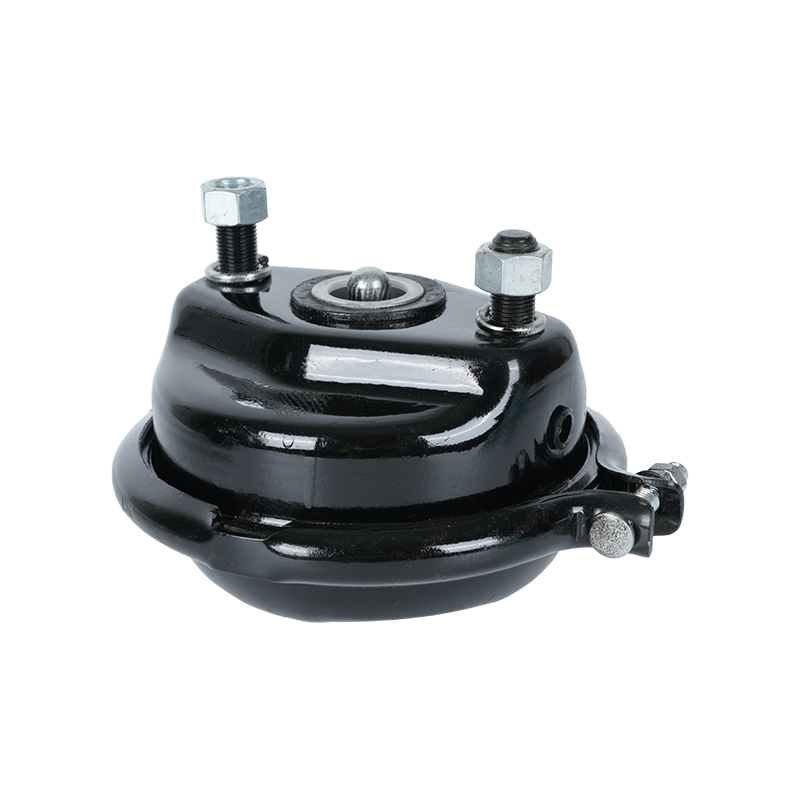

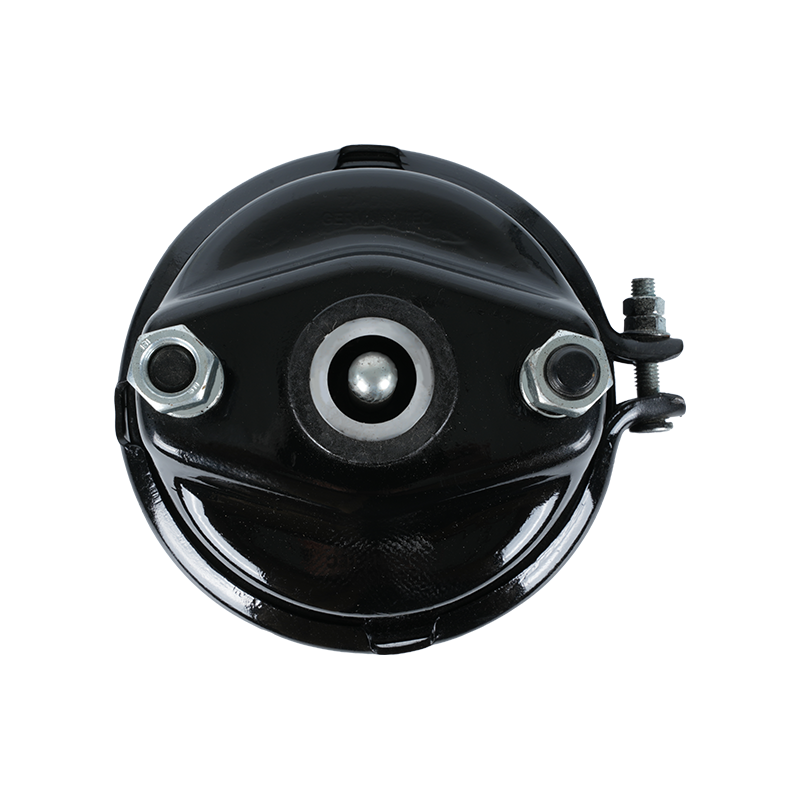

Single-chamber structure: suitable for conventional driving braking, compact structure and low cost, commonly found in light trucks. Tianbo optimizes the aluminum alloy material of the shell and the anti-fatigue design of the diaphragm to enable it to maintain linear output of the push rod at extreme temperatures of -40℃ to 120℃.

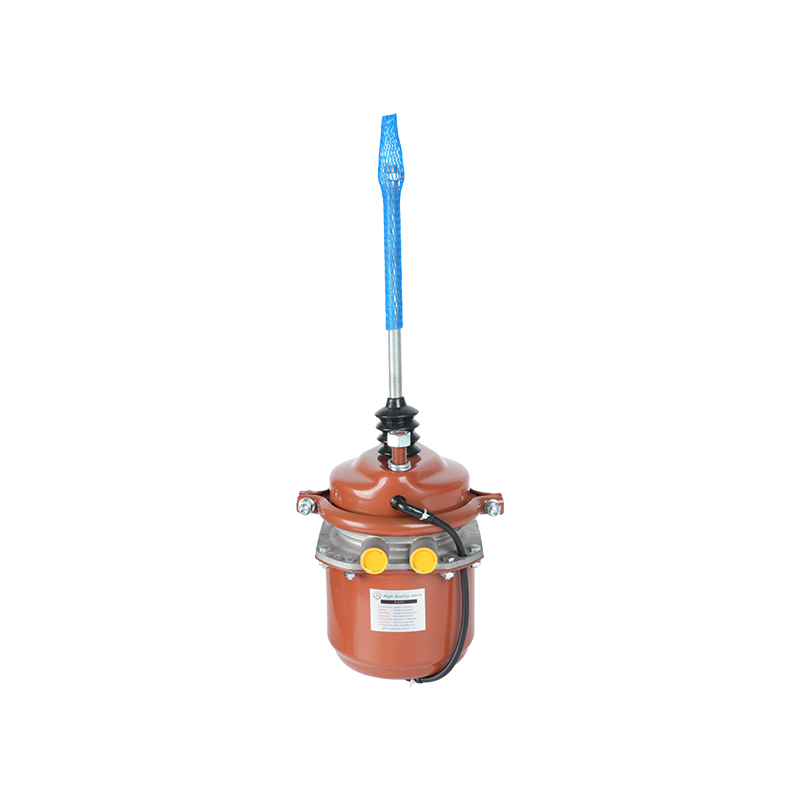

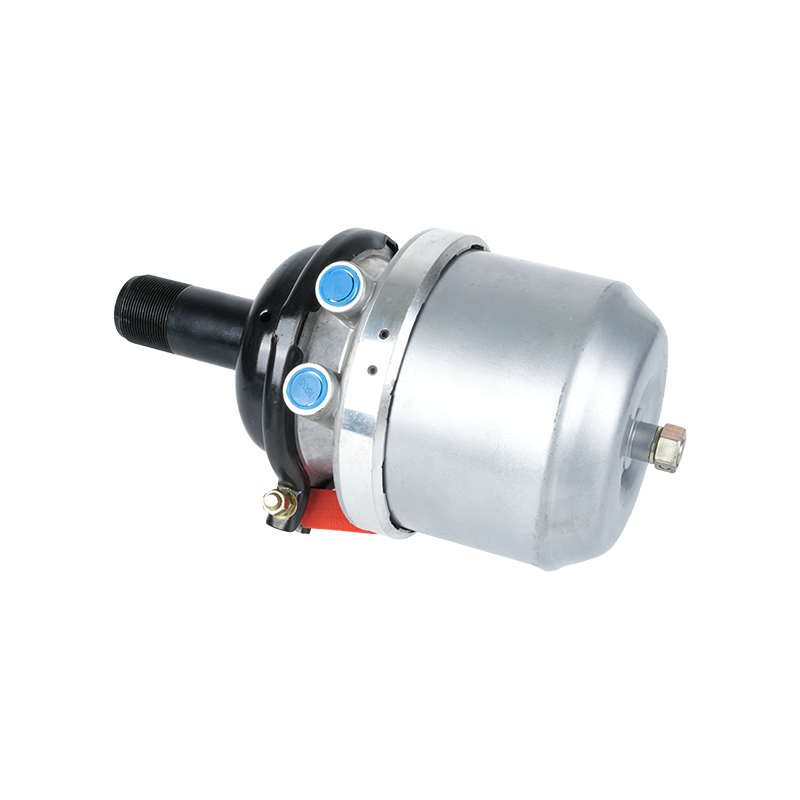

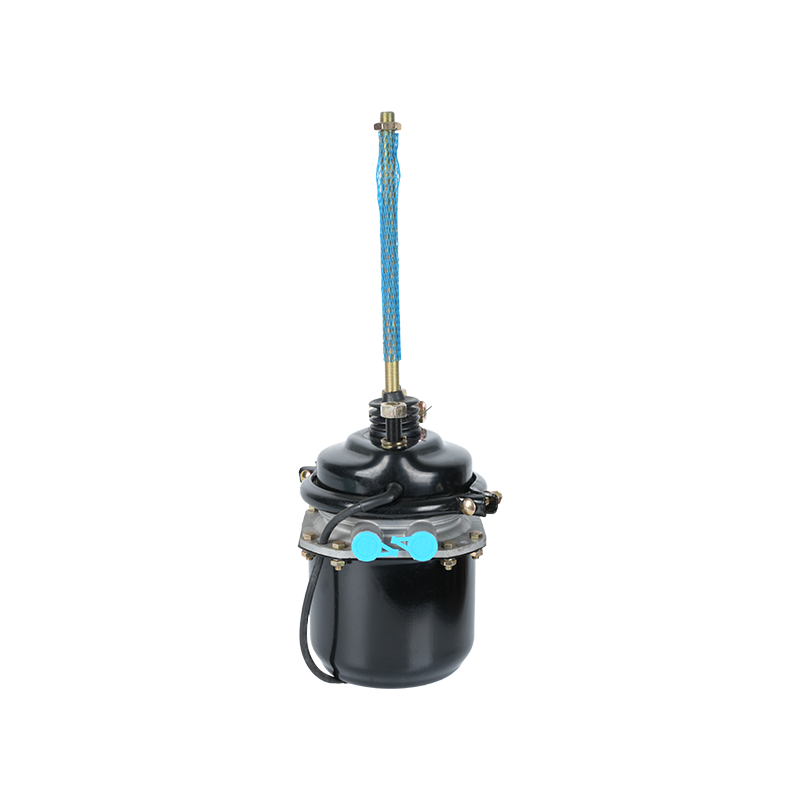

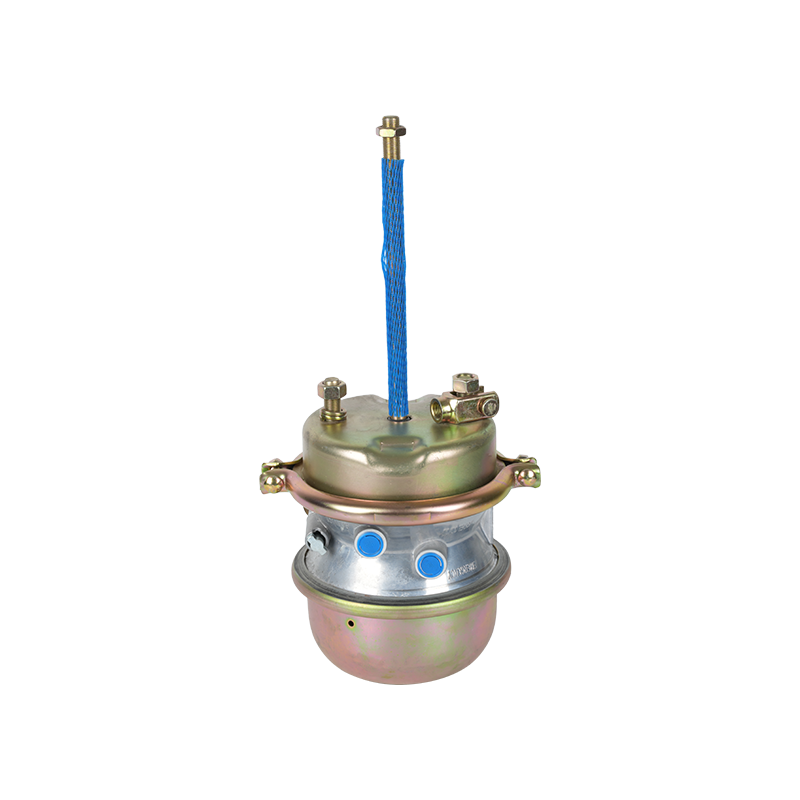

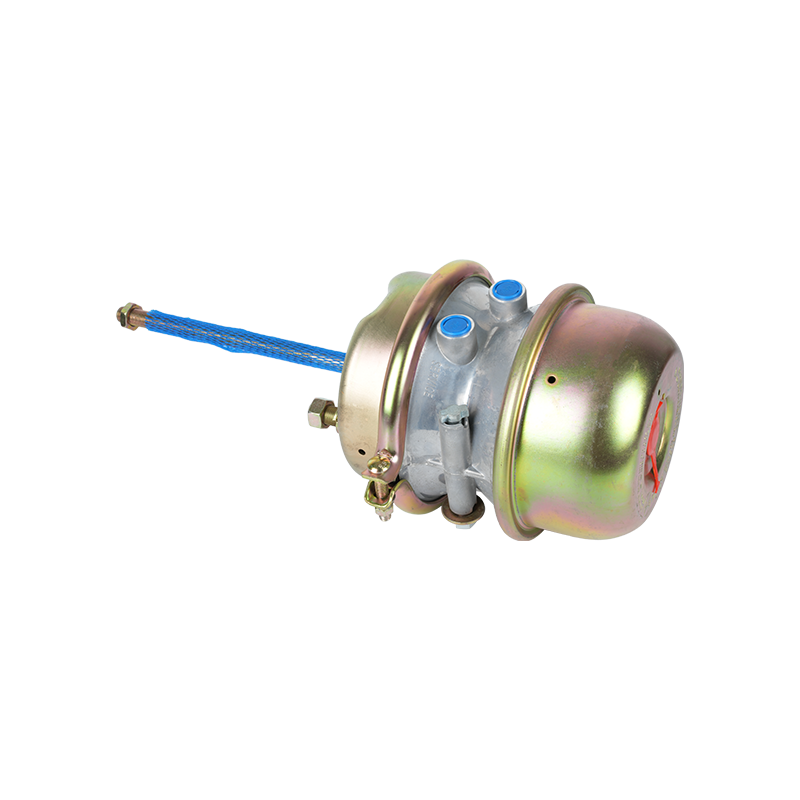

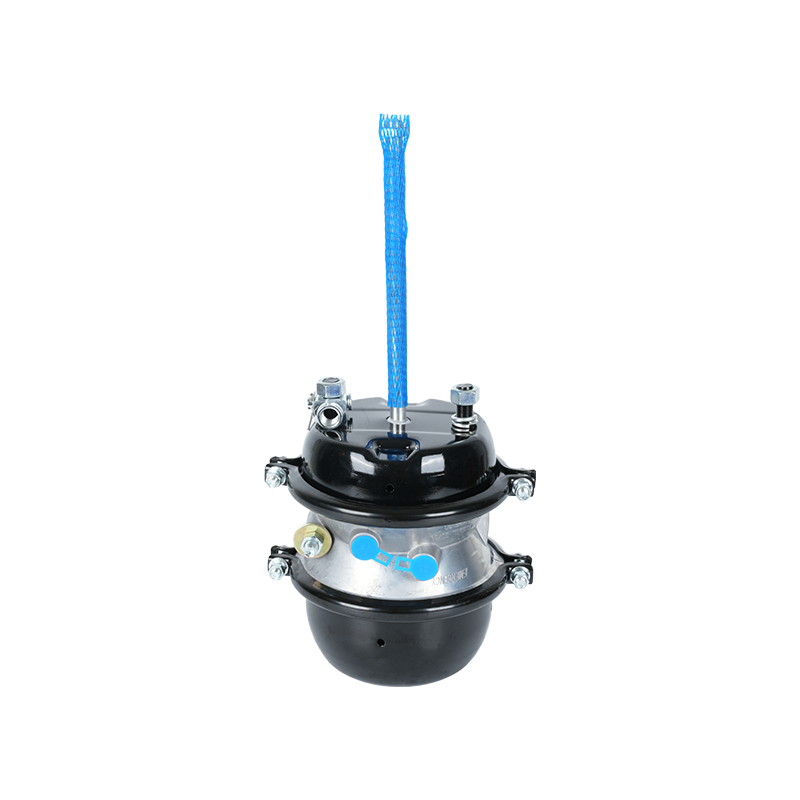

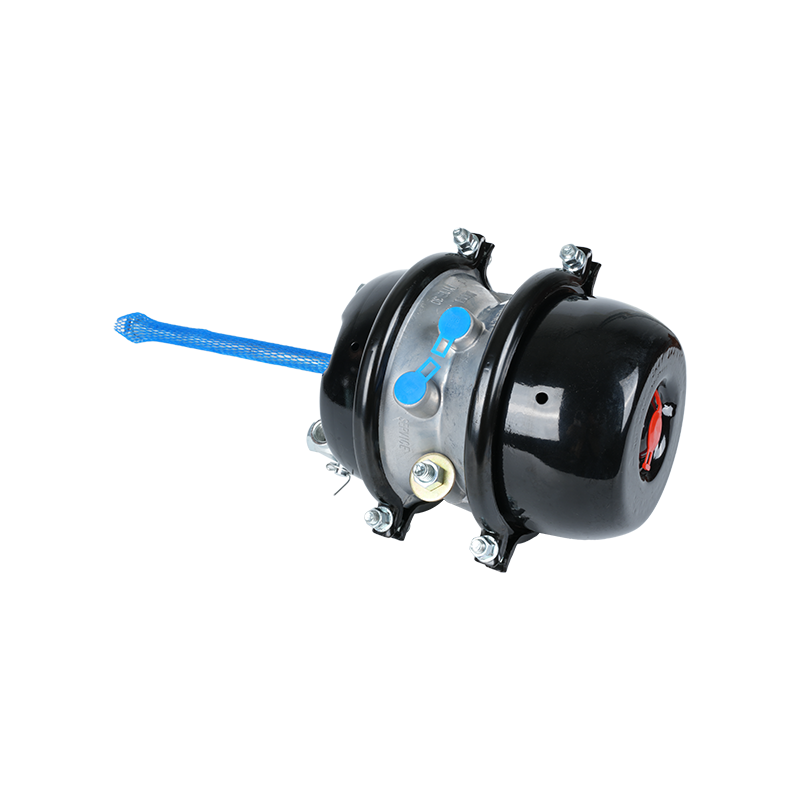

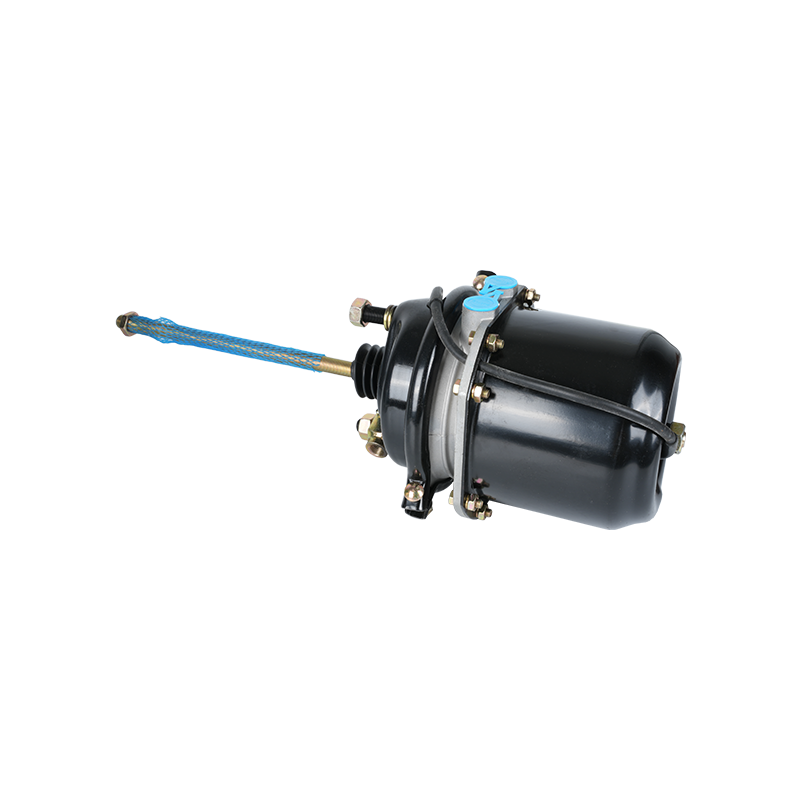

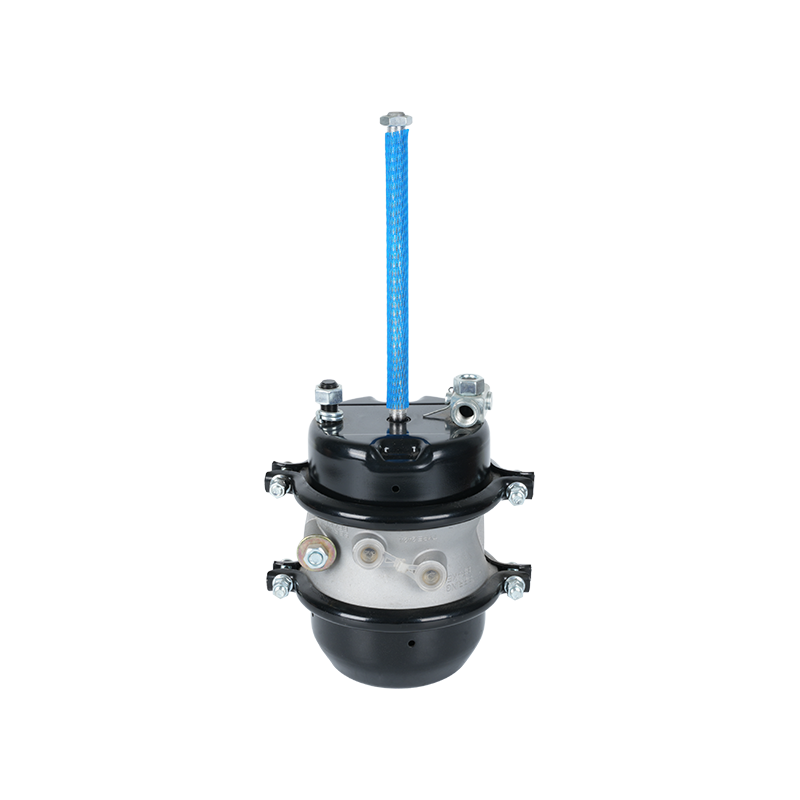

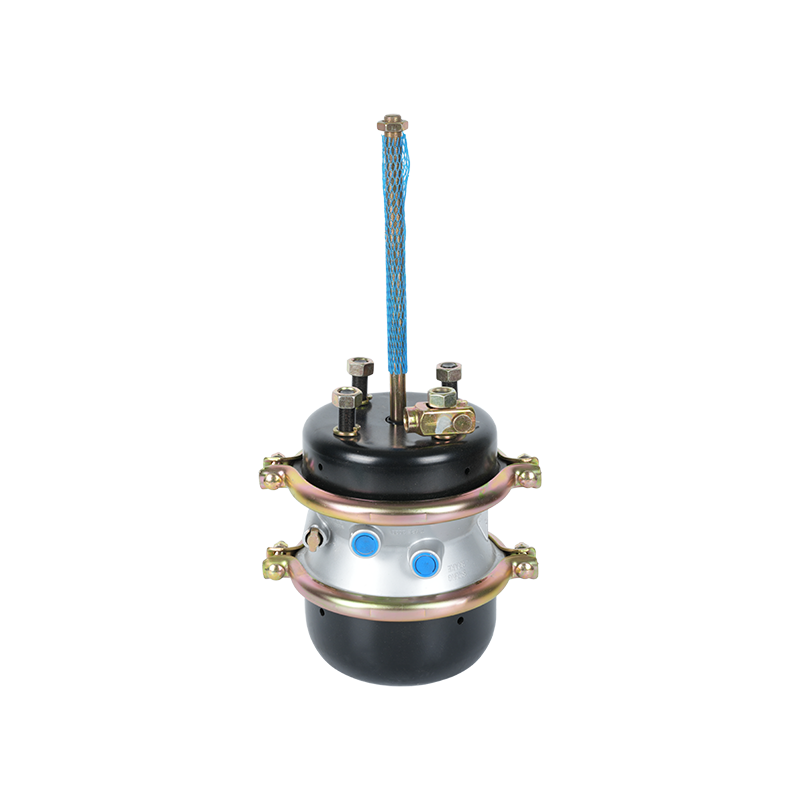

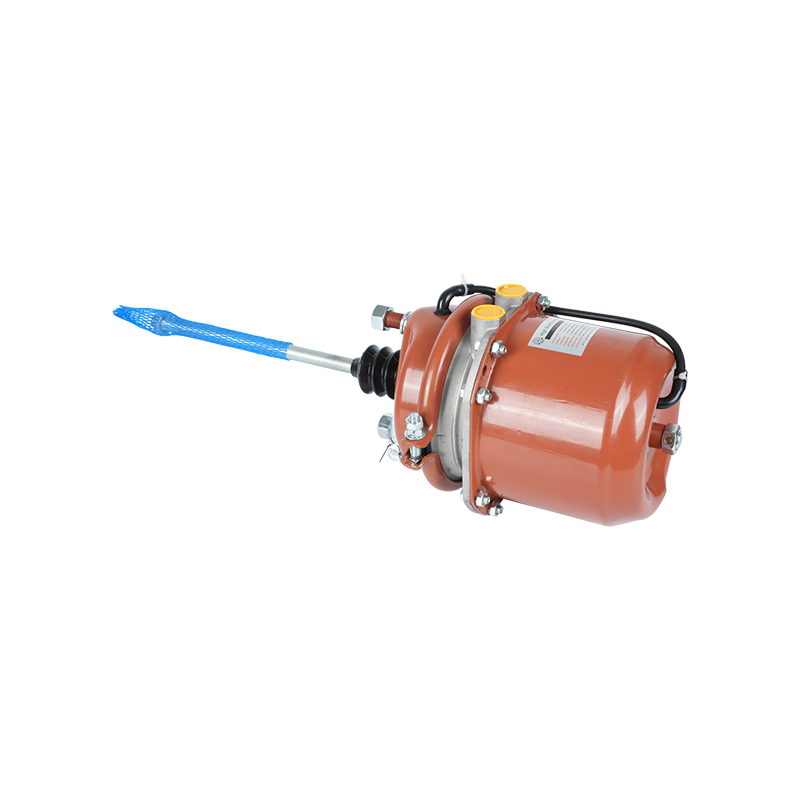

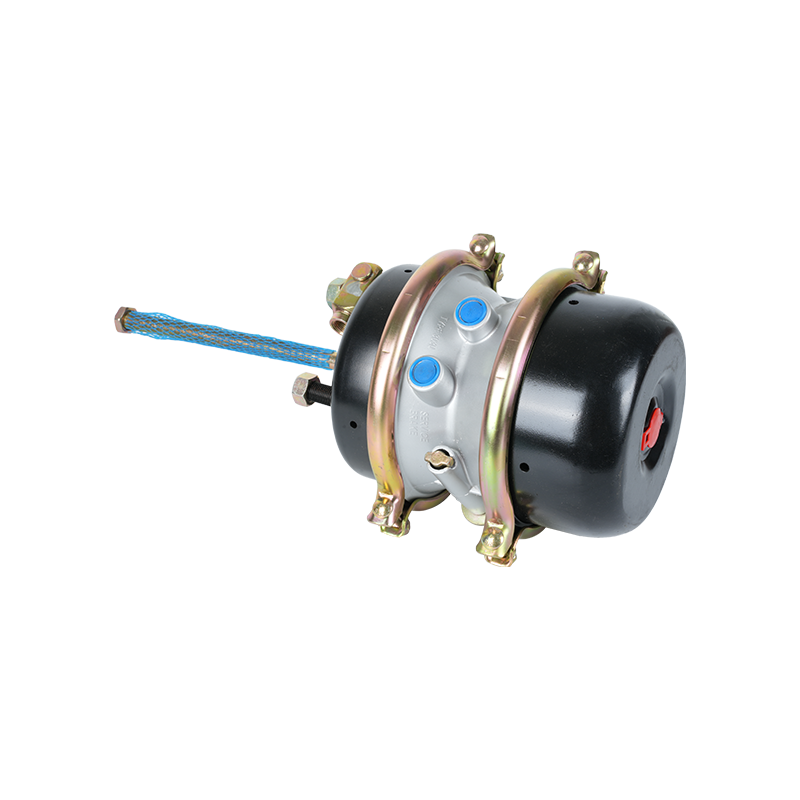

Dual-chamber structure: integrates the driving brake chamber and the parking/emergency brake chamber, and achieves double protection through independent air path control. For example, when the driving brake air pressure is abnormal, the energy storage spring can instantly release energy to complete emergency braking. Tianbo uses Japanese SMC pneumatic components and customized spring preload adjustment technology to enable dual-chamber products to achieve millisecond-level response under a critical pressure of 0.65MPa, becoming the standard for special vehicles such as hazardous chemical transport vehicles.

3. What are the core parameters that determine the life of the brake chamber? How does Tianbo break through the industry bottleneck?

Effective braking radius: affects the efficiency of braking torque transmission. Tianbo optimizes the push plate structure through finite element analysis and controls the effective radius error within ±0.5mm, which is 50% higher than the industry standard.

Diaphragm durability: Traditional rubber diaphragms are prone to cracking under frequent deformation. Tianbo introduces EPDM and aramid fiber reinforcement layers, combined with patented vulcanization technology, to make the product life exceed 2 million fatigue tests.

Corrosion resistance: For the high-humidity salt spray environment in Southeast Asia, Tianbo uses micro-arc oxidation + PTFE coating composite treatment, and the shell salt spray resistance time exceeds 1,000 hours, far exceeding similar competitors.

4. Under the wave of intelligence, how does Tianbo give the brake chamber the ability to "sense the future"?
With the development of intelligent driving technology, the braking system needs to be deeply coordinated with the electronic control unit. Tianbo is the first to launch an intelligent air chamber with integrated Hall sensor, which can monitor the displacement and braking force of the push rod in real time and upload it to the ECU through the CAN bus. This innovation not only helps the fleet to achieve preventive maintenance, but also plays a key role in the energy recovery system of new energy commercial vehicles-through millisecond-level braking torque adjustment, the efficiency of braking loss electric energy feedback is increased by 12%.

5. From "Made in China" to "World Trust", what is Tianbo's global quality code?

As one of the few domestic companies that have passed the EU ECE R90 certification, Tianbo has built a full-chain quality control system covering raw materials, processes, and testing:
Material traceability: Rubber diaphragm raw materials are specified to be supplied by Lanxess, Germany, to ensure the consistency of low-temperature elastic modulus;
Process control: Introduce visual guided robot assembly line, key bolt torque fluctuation rate ≤3%;
Extreme test: Each batch of products must pass 72 rigorous tests such as -45℃ cold start, 1.2 meters of water immersion seal, and 800 hours of salt spray.
It is this ultimate pursuit of "quality first, excellence" that has made Tianbo brake chambers receive the "zero PPM defect" evaluation from the Daimler technical team at the Hannover Motor Show in Germany, and become a regular in the international Tier1 supplier list.

From muddy country roads to intercontinental highways, from the scorching equator to the polar ice fields, every vehicle equipped with Tianbo brake chambers silently interprets the hard-core strength of China's smart manufacturing. When global users press the brake pedal, they trust not only the precision of the machine, but also the ingenuity of a national enterprise for 20 years. In the future, Tianbo may lead the brake chamber into a new era of mechatronics and data-driven, but what remains unchanged is the simple promise-"customer satisfaction, pursuit of better".
